Microaces Brushless Electronics Pack 1S with SR3X Stabilization
NEW FOR APRIL '23

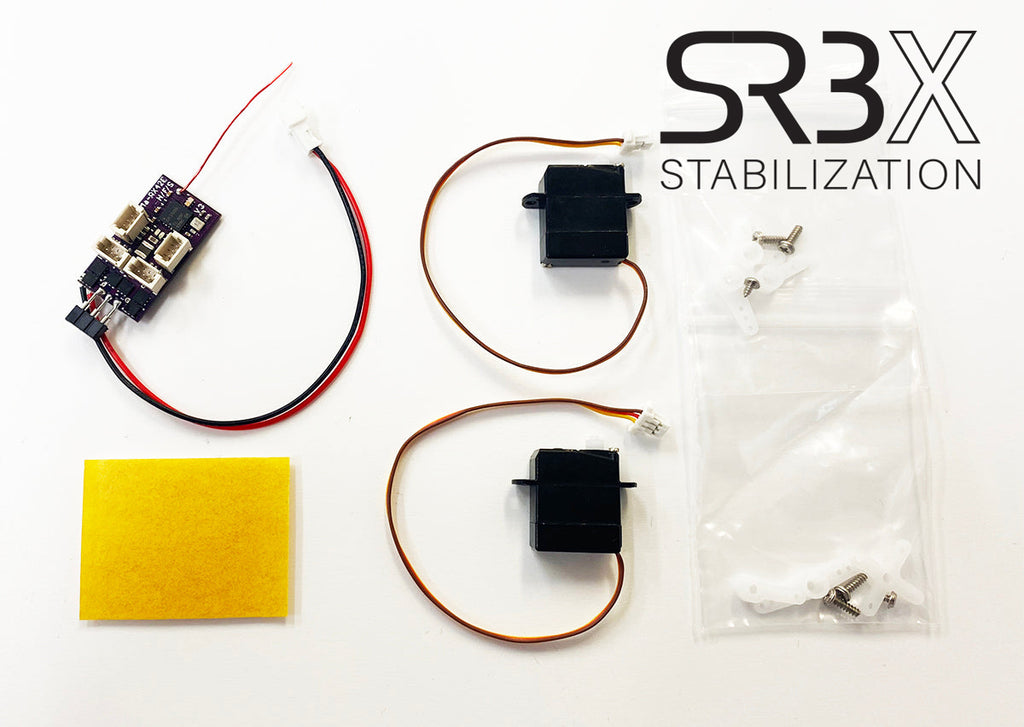

Brushless 1S Receiver for single cell operation PLUS two 1.7g micro servos for rudder and elevator control.
- Micro 5 channel 2.4GHz receiver, with 5A Brushless ESC & SR3X Stabilization
- 2 x 1.7g Micro digital rotary servos with mini JST connectors
- Double sided servo tape
An incredibly small and lightweight brushles receiver for models from 60 to 120g.
Receiver dimensions (WxLxH): 12 x 22 x 6.5mm, Weight: 1.7g including leads & motor connectors.
UM Style Battery Connector
3 Pin (round) Brushless Motor Connector
Available compatibility: Spektrum DSM2/X, Futaba S-FHSS or FrSky D8.
Recommended for use with:
AP05 5000kV Brushless Motor
GWS5030 prop and adapter
1.7g micro digital servos with mini JST connectors

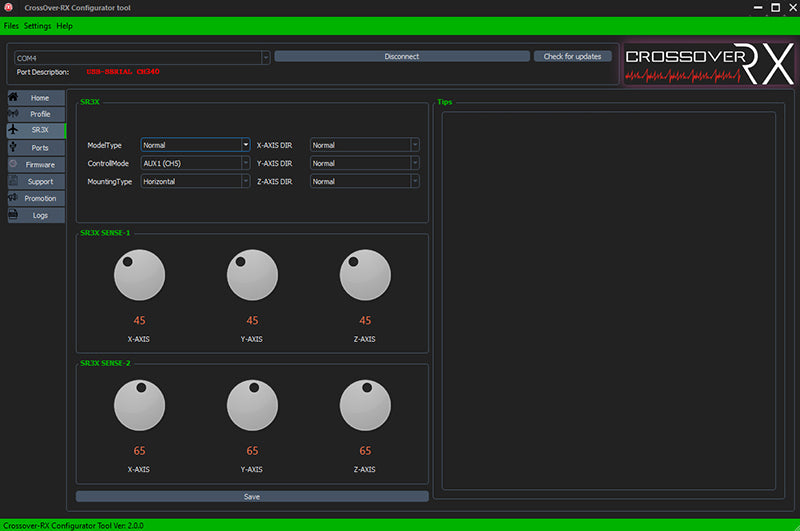

AND now ALSO includes a programmable* 3 axis stabilization system, integrated into the receiver.
- Two programmable levels of stabilization
- Separate gain control over each axis within each level of stabilization.

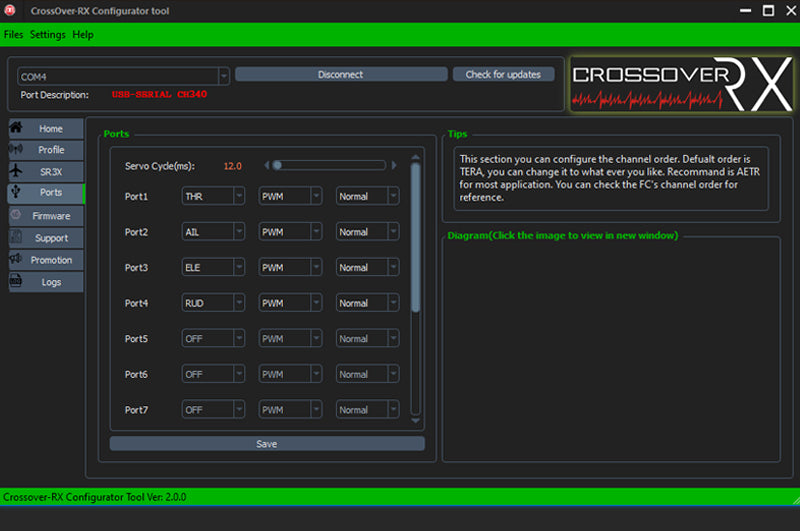

- Full control over allocation of ports on the receiver through app.

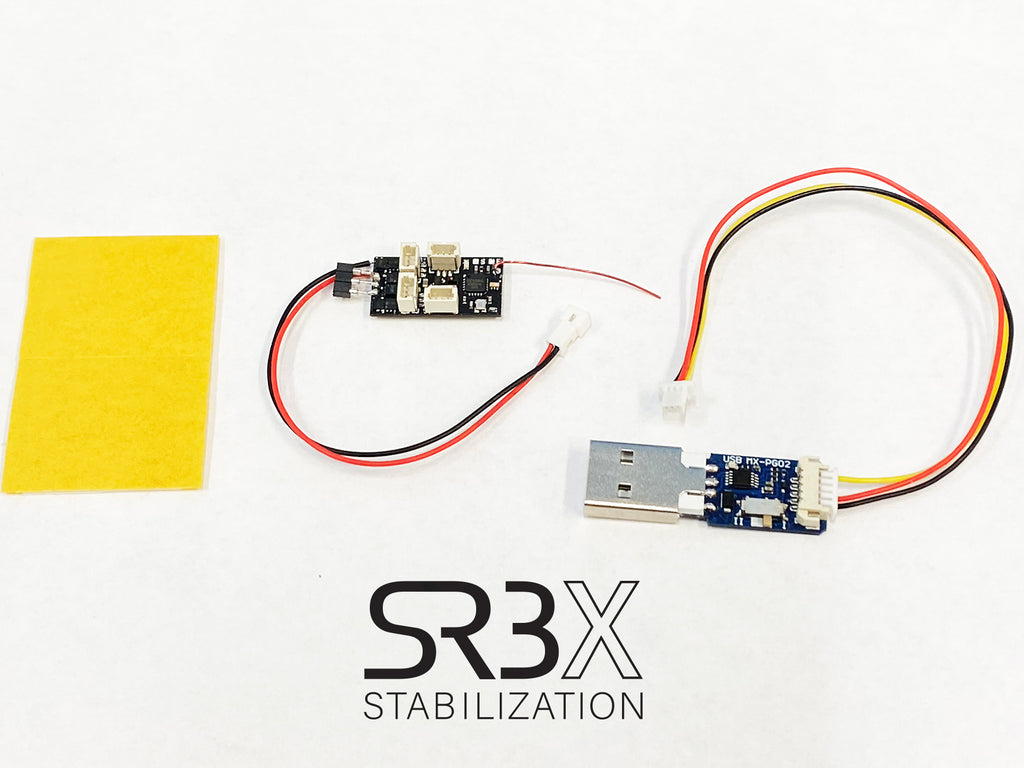

* Using PG02 USB interface tool and FREE Crossover RX app. for Windows
150-300mAh 3.7V 1S Lipo 25-45C (Example E-Flite EFLB1501S45)
Click below to download app:
Crossover RX Windows Interface
