Scrappee Biplane Classic Kit

£45.00

What is Scrappee?

An easy to build, stable flying model kit, created as an introduction to the world of micro radio controlled aviation.

If you're looking for a way into a fantastically absorbing hobby, this is by far the best way to go.

The Scrappee has been designed from the ground up by Microaces to satisfy a number of goals:

  • An easy, quick build kit that's also tough AND repairable.
  • The ultimate introduction to building strong, lightweight micros using modern materials.
  • An ideal platform for learning to fly micro radio control.

However, the Scrappee is not exclusively for the beginner. Because of its wide speed envelope, light weight and clean lines it can climb fast, loop big and turn quickly. Indoors and out, even in a breeze, its a great performing airplane that can be enjoyed by seasoned modelers too.

NOTE: To get your Scrappee in the air you will need an RC transmitter (compatible with one of the 3 types of receiver available) plus a suitable battery and charger. Please feel free to CONTACT US if you need some guidance!

Selecting the right receiver to complete your kit:

The Microaces AIO 5CH micro receiver is available with the following protocols. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol below to view the appropriate receiver to add to your order.

DSM2/X Compat. S-FHSS Compat. FrSky D8 Compat.  FrSky D16 Compat.

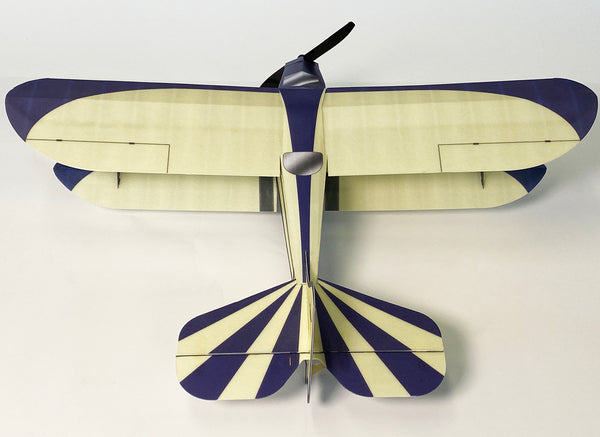

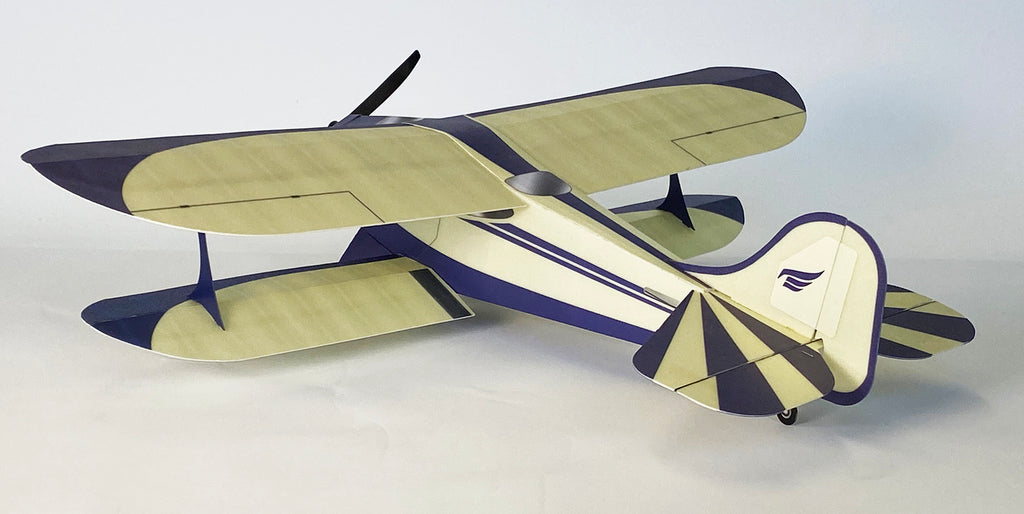

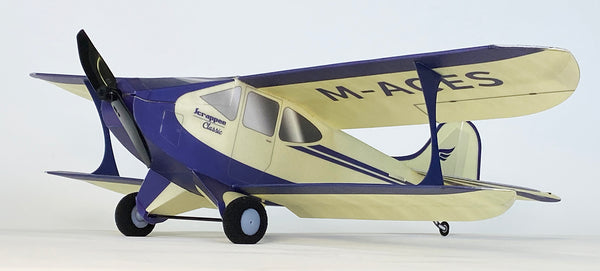

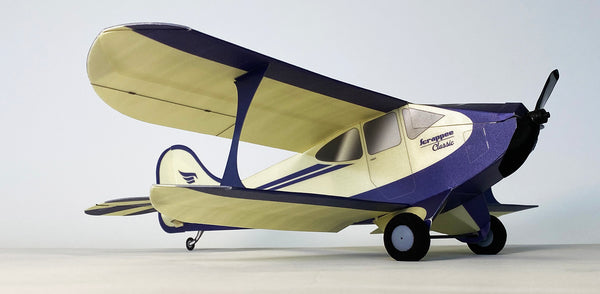

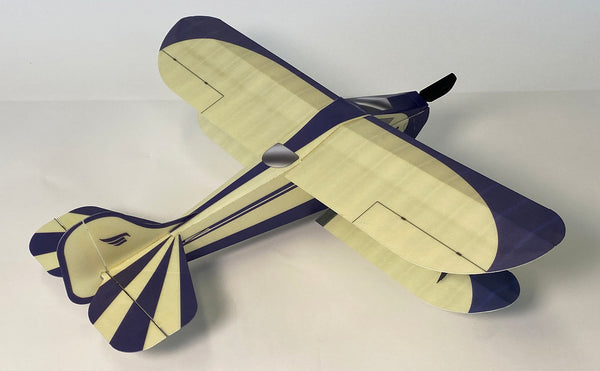

Scrappee Biplane Classic

With all the hallmarks of a privateer from the golden age of aviation; two tone colour scheme and elliptical wings and tail shaping, the Biplane Classic is a visual delight when in the air but is also able to take the abuse of the learning-to-fly process too.

Supported Build

Scrappee kits come with a step by step printed Assembly Guide illustrating every detail of the build to ensure you succeed in producing a great looking and flying model.

Specification

Microaces Scrappee Classic

Airframe Sport Biplane
Controls Rudder, Elevator, Throttle
Length 330mm / 13"
Wingspan 430mm / 17.0"
Wing Area 6.05 sq dm / 94 sq in.
Flying Weight. 42 - 45g/1.5 - 1.6oz
Wing Load ~7.2 g/sq.dm / 2.4oz/sq.ft.
Rec. Receiver

 Microaces AIO 5 Channel Receiver

Rec. Motor/ G.Box*

Microaces Motor Gearbox with STANDARD prop shaft

Rec. Prop* GWS 4530
Skill Level - Build Beginner
Skill Level - Pilot Beginner
Tools required

Scalpel, 180 Grit sandpaper or stick,

straight edge, tweezers

Rec. Adhesive Deluxe Materials Foam2Foam

 *Now included in the kit

Kit Content

NOW INCLUDES  Brushed Motor/Gearbox with standard prop shaft
GWS 4530 Prop and rubber prop adapter
SHEET PARTS 2mm laser cut Depron Airframe sheet
1mm printed & laser cut Depron fuselage sheet
1mm printed & laser cut Depron flight surfaces sheet x 4
200 micron printed & laser cut polypropylene sheet
polyester sticker sheet
LOOSE PARTS 0.8mm laser cut plywood motor mount
Two 30mm Ø Sponge rubber tires + 3D printed hub assembly
Four 3mm & two 4mm Ø noedymium magnets
2mm Ø carbon fibre rod axle
pre-shaped piano wire elevator & rudder control rods
