Scrappee Biplane Classic Kit
What is Scrappee?
An easy to build, stable flying model kit, created as an introduction to the world of micro radio controlled aviation.
If you're looking for a way into a fantastically absorbing hobby, this is by far the best way to go.
The Scrappee has been designed from the ground up by Microaces to satisfy a number of goals:
- An easy, quick build kit that's also tough AND repairable.
- The ultimate introduction to building strong, lightweight micros using modern materials.
- An ideal platform for learning to fly micro radio control.
However, the Scrappee is not exclusively for the beginner. Because of its wide speed envelope, light weight and clean lines it can climb fast, loop big and turn quickly. Indoors and out, even in a breeze, its a great performing airplane that can be enjoyed by seasoned modelers too.
NOTE: To get your Scrappee in the air you will need an RC transmitter (compatible with one of the 3 types of receiver available) plus a suitable battery and charger. Please feel free to CONTACT US if you need some guidance!
Selecting the right receiver to complete your kit:
The Microaces AIO 5CH micro receiver is available with the following protocols. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol below to view the appropriate receiver to add to your order.
| DSM2/X Compat. | S-FHSS Compat. | FrSky D8 Compat. | FrSky D16 Compat. |
Scrappee Biplane Classic

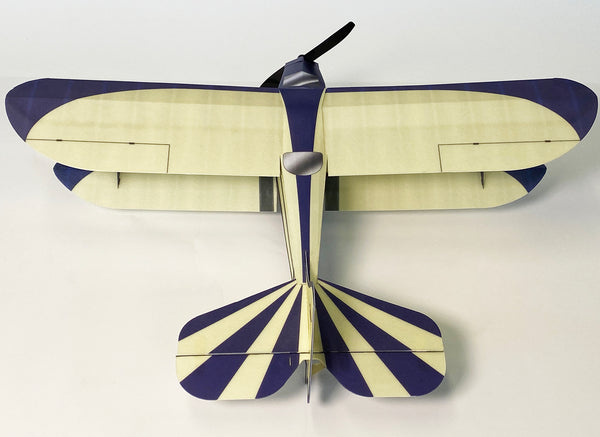

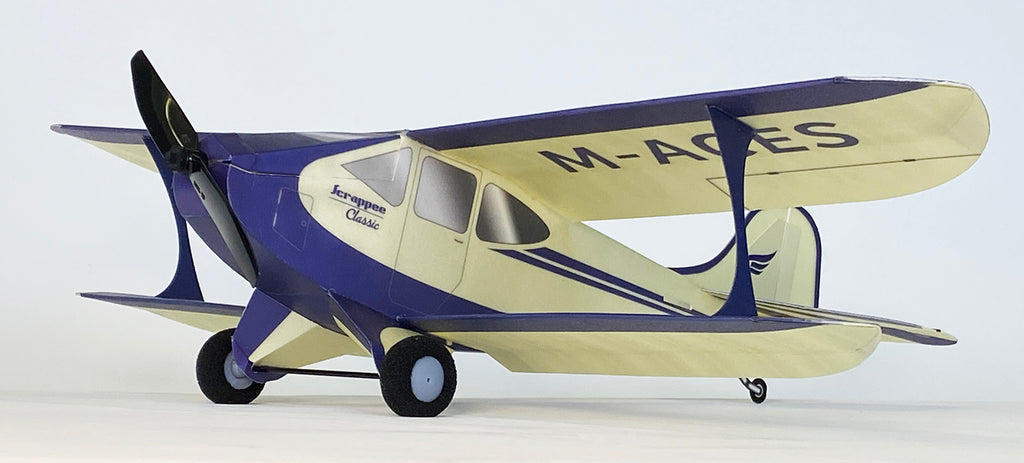

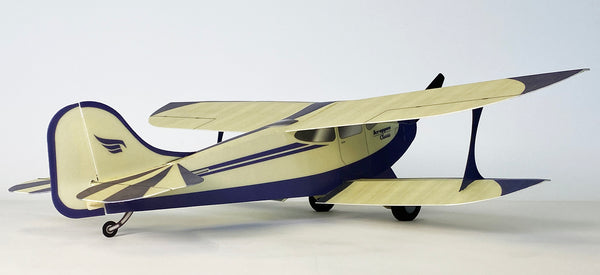

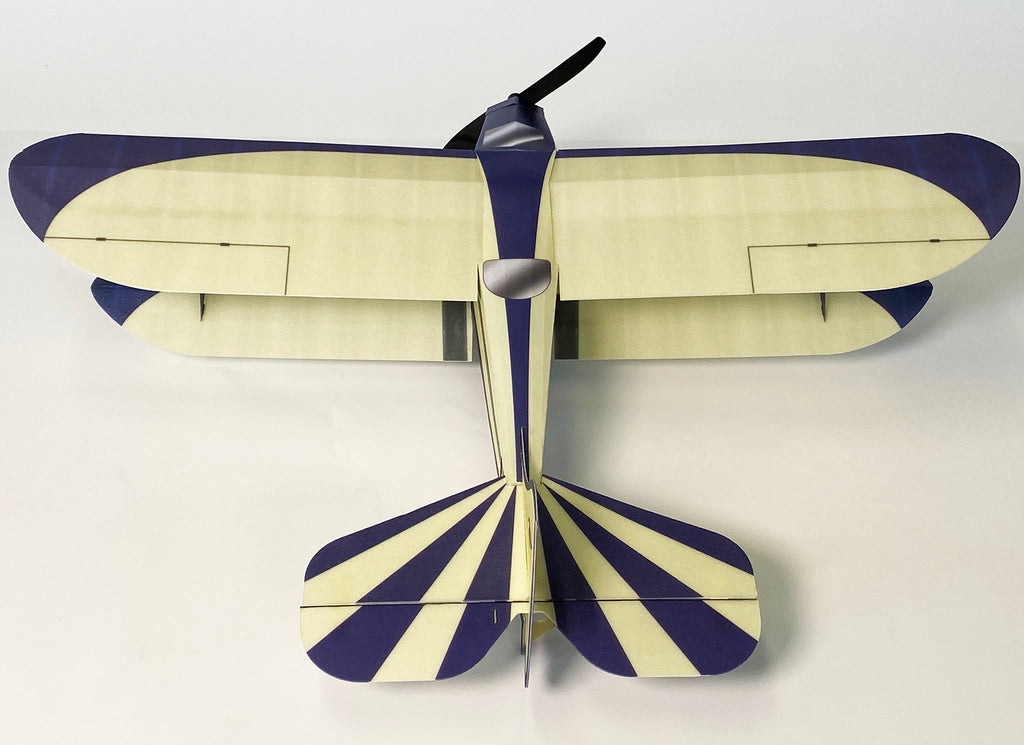

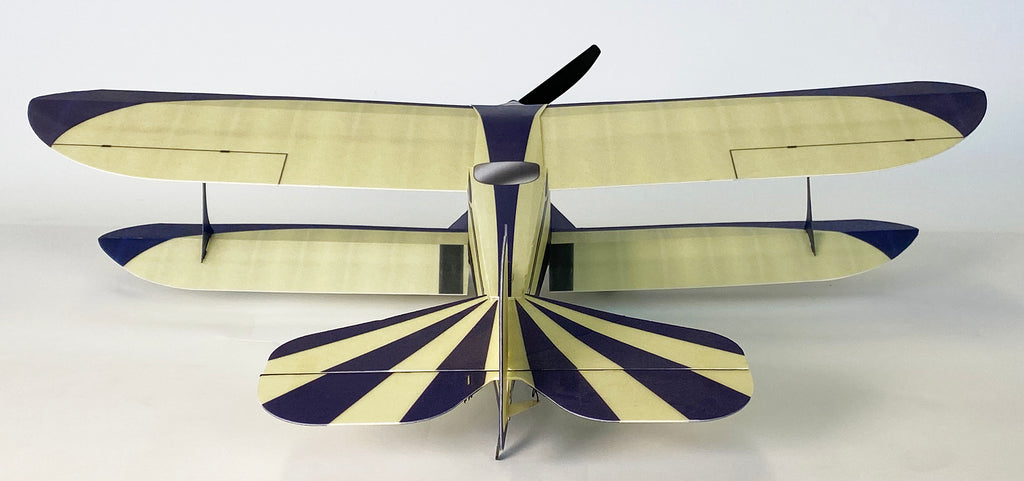

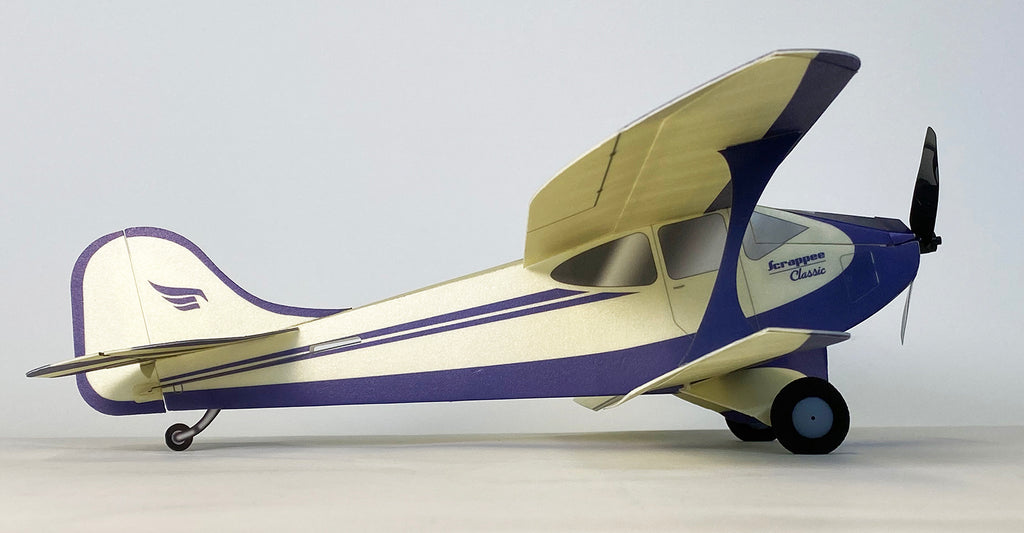

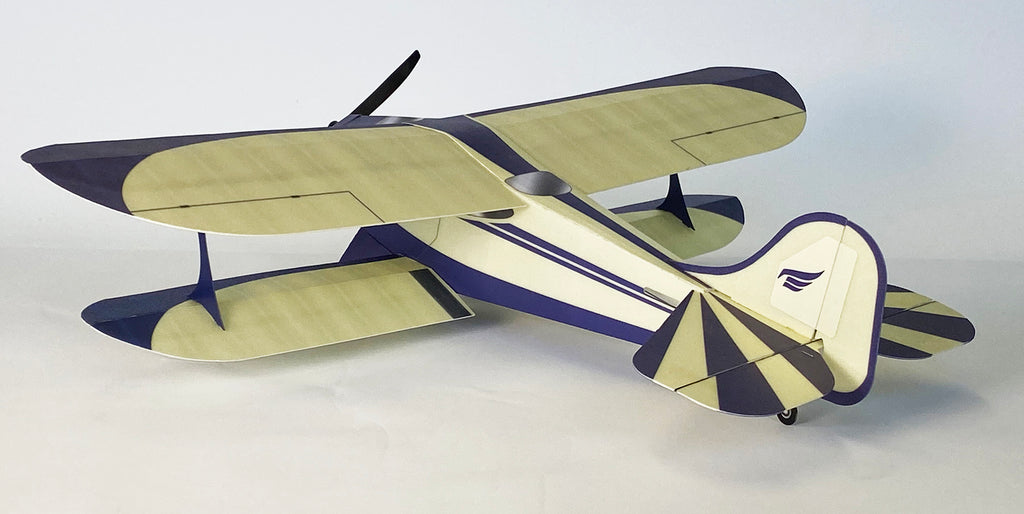

With all the hallmarks of a privateer from the golden age of aviation; two tone colour scheme and elliptical wings and tail shaping, the Biplane Classic is a visual delight when in the air but is also able to take the abuse of the learning-to-fly process too.
Floats with that?
Microaces has created a Tyvek Float kit for all Scrappee aircraft. It is designed to be interchangeable with the supplied wheelset so you can have the best of both worlds.
Click on the image below to find out more...
Supported Build
Scrappee kits come with a step by step printed Assembly Guide illustrating every detail of the build to ensure you succeed in producing a great looking and flying model.
Specification
Microaces Scrappee Classic
| Airframe | Sport Biplane |
| Controls | Rudder, Elevator, Throttle |
| Length | 330mm / 13" |
| Wingspan | 430mm / 17.0" |
| Wing Area | 6.05 sq dm / 94 sq in. |
| Flying Weight. | 42 - 45g/1.5 - 1.6oz |
| Wing Load | ~7.2 g/sq.dm / 2.4oz/sq.ft. |
| Rec. Receiver | |
| Rec. Motor/ G.Box* |
Microaces Motor Gearbox with STANDARD prop shaft |
| Rec. Prop* | GWS 4530 |
| Skill Level - Build | Beginner |
| Skill Level - Pilot | Beginner |
| Tools required | |
| Rec. Adhesive | Deluxe Materials Foam2Foam |
*Now included in the kit
Kit Content
| NOW INCLUDES | Brushed Motor/Gearbox with standard prop shaft |
| GWS 4530 Prop and rubber prop adapter | |
| SHEET PARTS | 2mm laser cut Depron Airframe sheet |
| 1mm printed & laser cut Depron fuselage sheet | |
| 1mm printed & laser cut Depron flight surfaces sheet x 4 | |
| 200 micron printed & laser cut polypropylene sheet | |
| polyester sticker sheet | |
| LOOSE PARTS | 0.8mm laser cut plywood motor mount |
| Two 30mm Ø Sponge rubber tires + 3D printed hub assembly | |
| Four 3mm & two 4mm Ø noedymium magnets | |
| 2mm Ø carbon fibre rod axle | |
| pre-shaped piano wire elevator & rudder control rods | |
