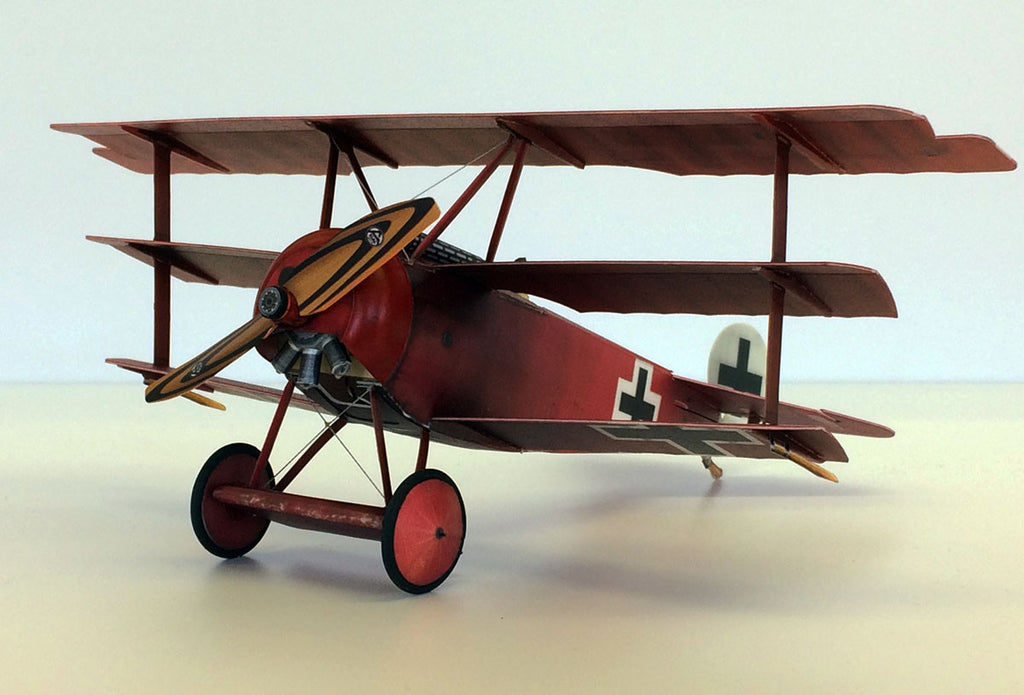

Fokker Dr.1 Manfred von Richthofen Kit
Flown by Manfred von Richthofen 1918
The Fokker Dr.1 was is an iconic fighter aircraft with many vices but, in the hands of an experienced pilot, it was a formidable weapon. This particular livery was flown by the most famous ace of WWI; the Red Baron.
The Dr.1 kit includes a vacuum formed plastic cowl, extensive laser cut light plywood parts and a replica Oberursel II rotary engine kit that actually spins with the prop!
History in the Making
Microaces love of aviation history ensures that the aircraft we reproduce as kits look fantastic on static display as well as in the air.
The Microaces 'Dreidecker' comes complete with a vac-formed cowl and a spinning Oberursel Ur.II dummy rotary engine kit, that adds an incredible level of mechanical detail to this astounding model.
The revised edition kit also includes enhanced and additional detail: Improved MGs, mounting step and lifting handles.
From 2022 this kit NOW INCLUDES...
This Microaces kit is now supplied 'as standard' with the most suitable Microaces motor/gearbox and propeller combination for the model.
So to complete the kit for radio controlled flight, all you need is an All In One (AIO) Receiver that's compatible with your transmitter.
Selecting the right receiver to complete your kit:
The Microaces AIO 5CH micro receiver is available with the following protocols. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol below to view the appropriate receiver to add to your order.
|DSM2/X Compat.||S-FHSS Compat.||FrSky D8 Compat.||FrSky D16 Compat.||AFHDS Compat.|
3D Printed Pilots
A fantastic enhancement to the kit, that really upgrades the level of realism is a 3 dimensional pilot. Add one to your order for the ultimate 'finishing touch'!
|Controls||Rudder, Elevator, Throttle|
|Length||245mm / 9.6"|
|Wingspan||305mm / 12"|
|Wing Area||3.32 sq dm / 51 sq in.|
|Flying Weight.||32 - 34g/1.2 - 1.4oz|
|Wing Load||~9.9 g/sq.dm / 3.0 oz/sq.ft.|
Microaces Motor Gearbox with LONG prop shaft
|Rec. Prop*||GWS 4530|
|Skill Level - Build||Intermediate|
|Skill Level - Pilot||Intermediate/Advanced|
|Tools required||Scalpel, 180 Grit sandpaper or stick, straight edge, tweezers|
|Rec. Adhesive||Foam2Foam / Foam safe CA / Aliphatic glue|
*Now included in Kit
|NOW INCLUDES||Brushed Motor/Gearbox with long prop shaft|
|GWS 4530 Prop and rubber prop adapter|
|SHEET PARTS||2mm laser cut Depron Airframe sheet|
|1mm printed & laser cut Depron fuselage sheet|
|1mm printed & laser cut Depron flight surfaces sheet|
|200 micron printed & laser cut polypropylene sheet|
|polyester sticker sheet|
|0.8mm plywood parts sheet|
|LOOSE PARTS||Two 30mm Ø neoprene rubber tires|
|Vacuum formed scale cowl|
|10mm brass sleeve for rotary engine|
|Two 4mm Ø noedymium magnets|
|100mm x 6mm Ø plastic tube|
|200mm x 5mm Ø plastic tube|
|1mm x 0.4mm carbon fibre strip|
|1mm Ø carbon fibre rod|
|pre-shaped piano wire elevator & rudder control rods|
Spares & Accessories
For building and finishing your Microaces Aero Kit see our Spares & Accessories page
